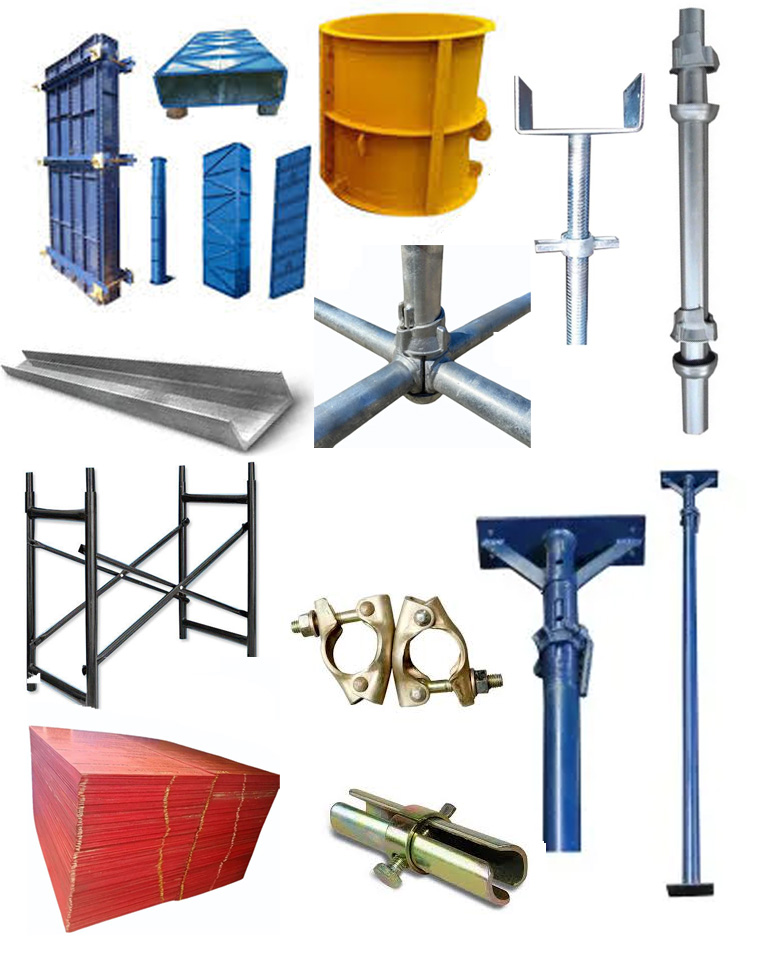

MS Props
Props 2.00 + 2.00 (Opening = 3.70 Mtr)
Props 2.00 + 3.00 (Opening = 4.70 Mtr)

Centering Plates
600mm x 900mm


MS Pipes
MS Pipe 6Mtr (B-Class)


Base Plates
adjustable base or head plate gives adjustment between 45mm to 300/500 mm Fixed base plate for 48.3mm OD tubes or for 60.3mm OD tubes. adjustable base 38 OD 4mm thick pipe
adjustment upto 600mm

ISMC Channels
ISMC 100 x 50

Plywood Shuttering Plates
The outer frame comprises of 63 X 5/6 mm flat Internal grid of 50 X 5mm flat forming grid of 300 X 300 mm or 300 X 450 mm.

Cup Lock System Horizontal
Cup Lock System Vertical - 2.00Mtr
Cup Lock System Vertical - 1.50Mtr
Cup Lock System Vertical - 1.00Mtr

Cup Lock System Vertical
Cup Lock System Vertical - 2.00Mtr
Cup Lock System Vertical - 1.50Mtr
Cup Lock System Vertical - 1.00Mtr

Joint Pin

MS Clamp And Fittings

U Head
38 OD 4mm thick pipe adjustment upto 600mm

Coupler
Right angle coupler for 40 X 40 NB tube @90 degree angle
Swivel coupler for 40 X 40 NB tube @ any degree

Cross Bracing
Cross Bracing - 2.00 mtr X 2.00 mtr

H Frame
H-Frames - 1.00 mtr X 2.00 mtr
